Tween

Convenient curve functions to ease a value between a start and end, like positions, scales, colors, anything you want to smoothly change.

👀 Summary

NsTween is a small yet powerful tweening framework for Unreal Engine. It allows smooth interpolation of floats, vectors and quaternions using a rich set of easing functions. Tweens can be controlled entirely through C++ or Blueprint nodes.

📦 Features

• Multiple data types: Float, Vector, Vector2D, Rotator, Quaternion, Transform and Color values.

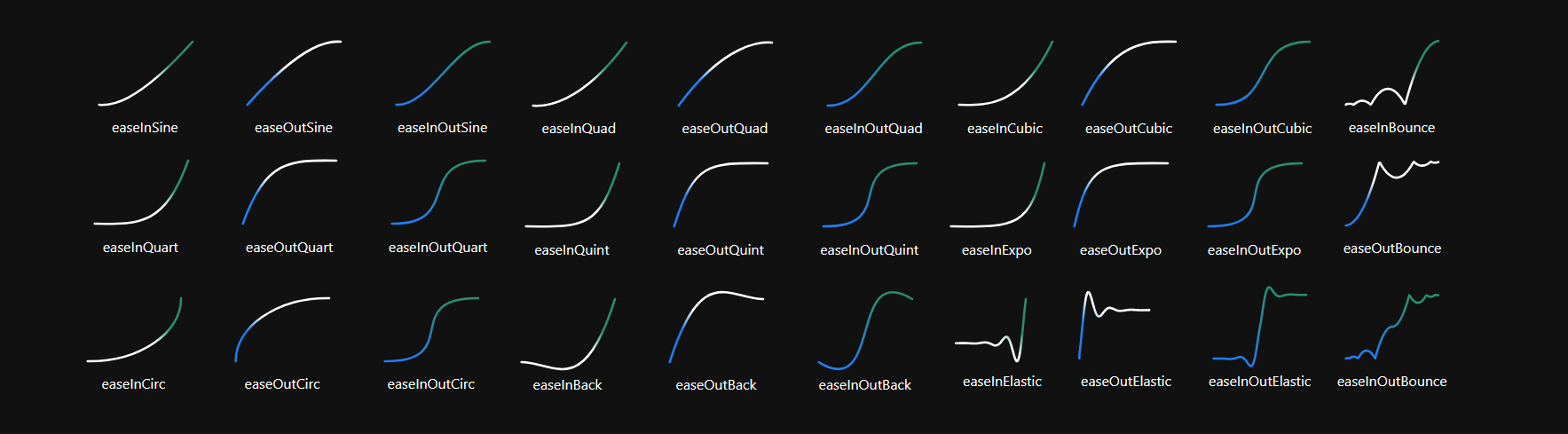

• Custom easing: Choose from many easing curves or drive interpolation via a user supplied curve.
• Warp mode: Built-in Looping, Delays and Ping-Pong behaviours.
• Direction: Chose between Forward or Backward
• Blueprint actions: Async Blueprint nodes for quick setup without code.
• Subsystem based: A Subsystem to handle all the active tweens.
• Tween-To-Tween Injection: Inject any different tween behaviour at any time into your current tween.

⚙️ Requirements

Unreal Engine 5.2+

🛠️ Installation

1. Clone or download this repository.
2. Copy the NsTween folder into your project’s Plugins directory.
3. Generate project files and enable the plugin when prompted.

🚀 Getting Started

Below is a minimal C++ example showing how to move an actor along the X axis using the fluent tween helpers built into FNsTween:

#include "NsTween.h"

void AMyActor::BeginPlay()
{
    Super::BeginPlay();

    FNsTween::Play(
        /**Start*/   0.f,
        /**End*/     100.f,
        /**Time*/    2.f,
        /**Ease*/    ENsTweenEase::InOutQuad,
        /**Update*/  [this](float Value)
        {
            SetActorLocation(FVector(Value, 0.f, 0.f));
        });
}

The library also exposes Blueprint nodes for the same functionality if you prefer a visual approach. Below is a slightly more advanced snippet showing how to make an item float up and down while spinning for 10 complete loops

#include "NsTween.h"

void AFloatingItem::BeginPlay()
{
    Super::BeginPlay();

    // Float continuously
    FNsTween::Play(
         /**Start*/   GetActorLocation().Z,
         /**End*/     GetActorLocation().Z + 40.f,
         /**Time*/    1.f,
         /**Ease*/    ENsTweenEase::InOutSine,
         /**Update*/  [this](float Z)
        {
            FVector CurrentLocation = GetActorLocation();
            CurrentLocation.Z = Z;
            SetActorLocation(CurrentLocation);
        })
        .SetPingPong(true)
        .SetLoops(-1); // infinite loops


    // Rotate and print 10 times the Loop
    FNsTween::Play(
        /** Start  */  0.f,
        /** End    */  360.f,
        /** Time   */  2.f,
        /** Ease   */  ENsTweenEase::Linear,
        /** Update */  [this](float Yaw)
        {
            SetActorRotation(FRotator(0.f, Yaw, 0.f));
        })
        .SetLoops(10) // 10 full spins
        .OnLoop([this]()
        {
            UE_LOG(LogTemp, Warning, TEXT("Spin finished"));
        });
}

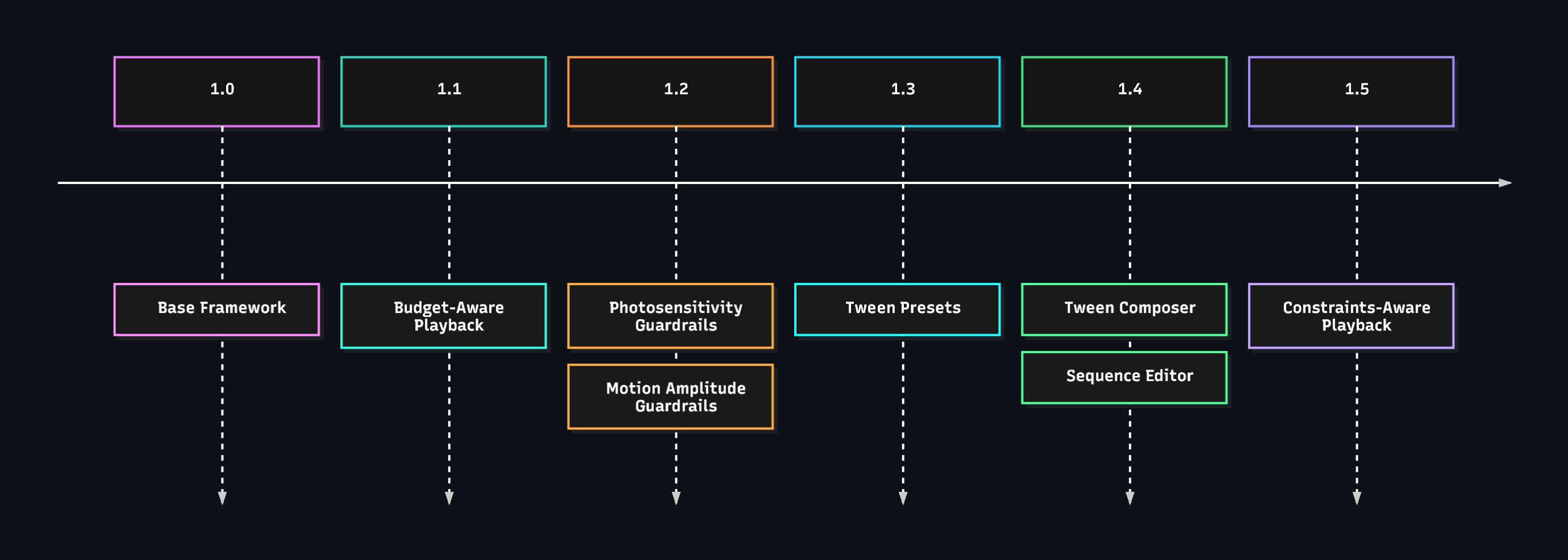

🚩 Road Map

🔧 API

Runtime Core

• FNsTween – Runtime tween state tracking easing, wrap modes, delegates, and pause behavior.
• FNsTweenBuilder – Fluent setup handle chaining specs, callbacks, activation, and control forwarding.
• UNsTweenSubsystem – Game-instance subsystem ticking live tweens, processing commands, and allocating easing curves.

Data & Specs

• FNsTweenSpec / FNsTweenCommand / FNsTweenHandle – Blueprint-ready structs describing playback options, delegate hooks, queued commands, and handles.
• UNsTweenSequence – UObject sequence asset storing ordered tween specs for content-driven playback.

Blueprint & Async Surface

• UNsTweenBlueprintLibrary – Central Blueprint library spawning tweens, exposing ease presets, and forwarding subsystem controls.
• UNsTweenAsyncAction (base) – Shared async action base normalizing inputs, binding events, and managing lifecycle cleanup.
• Typed async nodes – Float, vector, rotator, transform, and color broadcasts with curve overrides.

Strategies & Helpers

• Callback strategy / interpolators – Lambda-friendly callback strategies and templated interpolators supplying type-appropriate lerp math.
• Native value strategies – Native ITweenValue implementations initializing targets, applying eased updates, and ensuring completion.

Easing Implementations

• FNsTweenPolynomialEasing – Polynomial easing evaluator covering sine, expo, elastic, bounce, and back presets.
• FNsTweenBezierEasing – Cubic Bezier easing solver inverting time with Newton steps before sampling output.
• FNsTweenCurveAssetEasingAdapter – Adapter wrapping UCurveFloat assets to drive easing while falling back gracefully.

🧭 Framework Layout

Use the following map when you need to dive deeper than the high-level feature overview. Each entry mirrors the folder layout inside the plugin so you can jump straight from prose into the exact file that owns the logic.

Public Surface

• Source/NsTween/Public/NsTween.h — contains FNsTween::Play and the templated BuildT<T> helpers that every example in the docs references.
• Source/NsTween/Public/NsTweenTypeLibrary.h — enums, delegates, and light-weight structs.
• Source/NsTween/Public/Interfaces/ITweenValue.h — the strategy contract implemented by each type-specific value driver.
• Source/NsTween/Public/Templates/ — interpolators and callback strategies.

Runtime Flow

• Source/NsTween/Private/NsTween.cpp — documents the lifetime of an active tween, including pause/cancel semantics and wrap modes.
• Source/NsTween/Private/NsTweenBuilder.cpp — shows how specs become runtime objects before entering the subsystem.
• Source/NsTween/Private/NsTweenSubsystem.cpp — central tick loop and allocation strategy for live tweens

⬇ Download on GitHub
